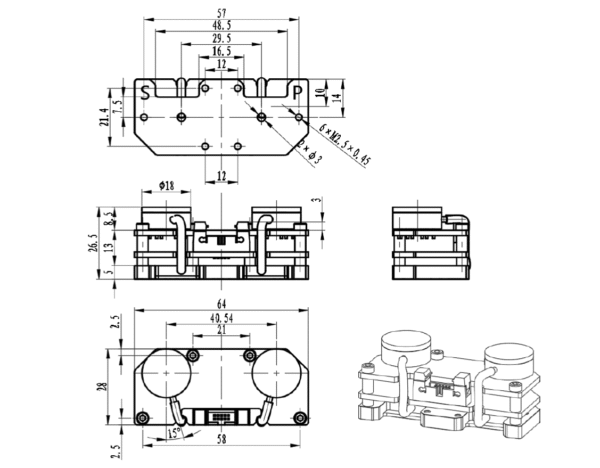

PID-4100 Dynamic-Static Pressure Sensor

GP-2610 Digital Pressure Sensor
GP-2610 Digital Pressure Sensor
Back to products
GF-KS Clamp-on Flow Sensor
GF-KS Clamp-on Flow Sensor

Overall accuracy ±0.05% FS.
Interface for static pressure and total pressure
Temperature range -55℃ to +85℃
Flexible electrical pressure interface

Datenblatt

Nur englische Version

Add to compare
Schlagwörter: , , , , , ,

The PID4100 dynamic and static pressure sensor is an aircraft dynamic and static pressure detection device. Its function is to detect two pressure signals in the system, corresponding to the aircraft’s total pressure and static pressure.

The dynamic pressure is then calculated and output as RS-422 digital signals of dynamic and static pressure.
