TBH Smart Temerature Sensor

TBH is an IO-Link smart temperature sensor designed for accurate temperature monitoring in industrial applications. It features a 4-digit large digital display with a mirrored, semi-transparent design, providing clear and easy-to-read temperature values. The integrated molded display panel ensures a compact and robust structure.

The sensor supports normally open / normally closed operation and offers flexible PNP, NPN, and push-pull outputs. It can be configured for switching signal, analog signal, or IO-Link communication, with adjustable hysteresis and switching window to meet different control requirements. The start and end points of the analog output can be freely set.

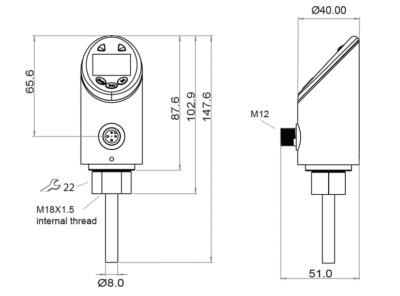

The housing is made of stainless steel, ensuring high durability and suitability for harsh industrial environments. An M12 A-code 4-pin connector is used for quick and reliable installation. All parameters can be easily set via the on-board buttons or IO-Link, and the key lock function effectively prevents accidental operation.
