GA-S02 Three Valve Assy
Differential transmitter protection
Stainless steel
Compact size
Operation pressure ≤2MPa
Nur englische Version

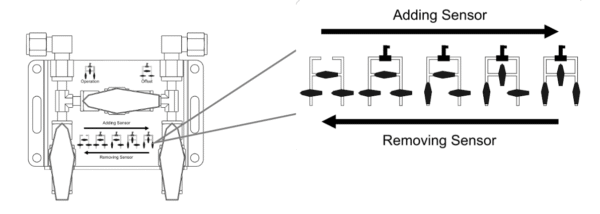

Three-valve assy consists of three valves which are connected to each other, the left side is the high-pressure shut-off valve, the right side is the low-pressure shut-off valve, and the center is the balancing valve.
The three-valve assy is used in conjunction with a differential pressure transmitter to connect or disconnect the positive and negative pressure measurement chambers from the pressure source, or to disconnect or connect the positive and negative pressure measurement chambers.
Proper use of the three-valve assy prevents damage to the differential pressure transmitter due to pressure overload at one end.
Material
304 SSL: Backboard, Valve, Tube
PTFE: Seals
Nylon: Handle
PET: Label
Ambient Temperature: -20℃~60℃
Medium Temperature: -40℃~70℃
Operating Pressure: ≤2MPa
Overpressure: 4MPa
Medium: Any Gass, air or liquid compatible with SSL and PTFE
Size: 127.5mm × 110mm x 57mm (L x W x H)
Net Weight: 560g
Gross Weight: 710g, including accessories and packages
Pressure Input Port: Φ6mm ferrule fitting
Pressure Output Port: Φ6mm ferrule fitting
Suitable Tube: Φ6mm x 1mm (Thickness)
Connector: ZG1/4 Male – Φ6mm ferrule fitting
Size: 127mm × 110mm x 57mm (L x W x H)
